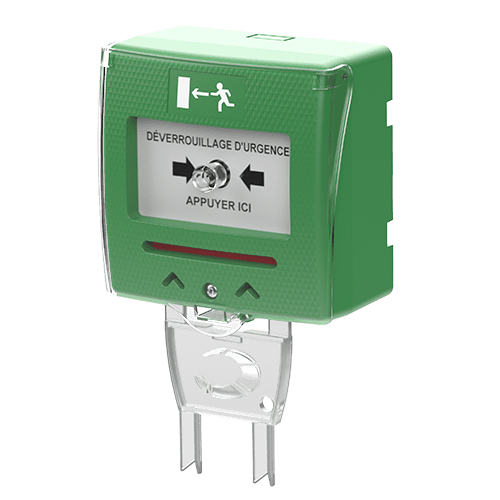

SHOKV1 manual call point 1 contact
The SHOK® manual call point range developed and assembled inFrance by SEWOSY, was especially intended to suit the needs of installers. Whatever the situation, you can be sure to meet perfectly your needs.
Multiple benefits make this product unique on the market:
– an exclusive design thanks to the « Diamond » texture of its front face, giving an original and elegant aspect,
– double reset possibility on front or below. The front option is more ergonomic ; indeed, several devices can be installed successively, one above the other, without disturbing their reset,
– a key holder located on the rear, on both sides of the surface mounting box, in order to stock the 2 keys included in the packaging and minimize the risk of loss,
– cable entry on the top, with pre-drilling for cable duct,
– improved LED lighting.
Technical specifications:
1 C/NO/NC contact with high switching rate, enhancing its resistance (the switch can better withstand high intensities provided by other devices: locks, electromagnetic locks…)
Operating voltage: 12/24V DC (+10%)
Consumption: 12V DC max. 45 mA / 24V DC max. 62 mA
Switching rate: 250V AC – 5 A / 30V DC – 4 A
Protection rating: IP40 (indoor use)
Operating temperature: 0 to +50°C
Locking by central screw
Surface or flush mounting on 60 mm mounting box
Protection Cover included
Available languages: French, English, Spanish, Portuguese, Italian and Dutch
The product range includes the versions 1 contact SHOKV1 or 2 contacts, as well as two models with buzzer/LED. One of them is equipped with a new fonctionality: the cover opening detection, associated to a specific white LED.
